SDM01-EWM: Smart Energy Monitor for Dynamic Load Balancing and Whole-Home Energy Management

The rapid adoption of electric vehicles (EVs) has highlighted the importance of effective home energy management. Ensuring efficient power distribution and avoiding grid overloads are key challenges that require innovative solutions.

I. Understanding Dynamic Load Balancing (DLB)

Dynamic Load Balancing (DLB) is a smart feature that adjusts the power consumption of EV chargers in real time to avoid overloading a home’s electrical system. By redistributing available power among appliances, DLB ensures efficient energy usage while maintaining grid stability and safety.

Dynamic Load Balancing (DLB) relies on accurate and real-time energy monitoring to function effectively. Energy monitors play a critical role in DLB by providing essential data on power consumption and generation. This data enables EV chargers and home energy systems to dynamically adjust power distribution, ensuring optimal performance and preventing grid overloads.

II. Approaches to Implementing DLB

With energy monitors as the eyes of DLB, there are three common implementation approaches:

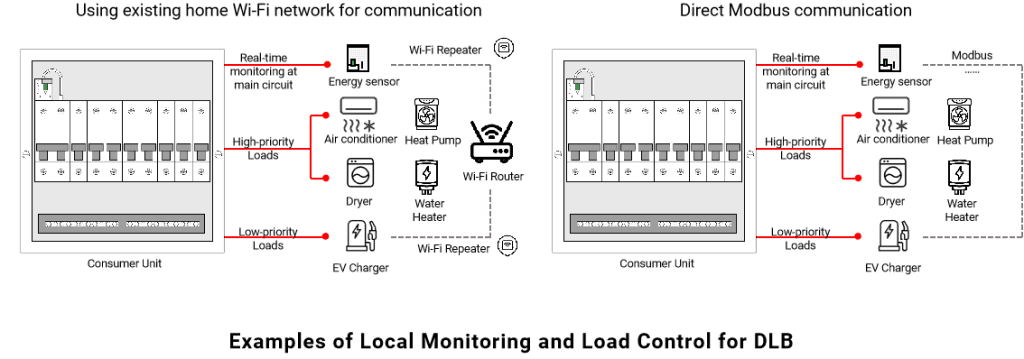

1. Local Monitoring and Load Control:

• How it works: A current sensor or energy monitor tracks energy usage, enabling the EV charger to adjust its power output dynamically.

• Advantages: Simple setup and independence from cloud connectivity.

• Limitations: Limited by the monitoring device’s capacity and local controls.

2. Cloud-Based Load Balancing:

• How it works: Energy data is sent to a cloud platform that dynamically allocates power to the EV charger.

• Advantages: Centralized intelligence allows for predictive and scalable energy management.

• Limitations: Requires reliable internet connectivity and may experience latency.

3. Integrated Home Energy Management Systems (HEMS):

• How it works: HEMS controllers integrate energy monitors, EV chargers, and devices like PV systems and batteries to optimize energy usage.

• Advantages: Provides comprehensive household energy optimization.

• Limitations: High initial investment and complex installation.

III. Key Pain Points in Home Energy Management

1. For EV charger manufacturers：

Developing proprietary energy monitors for dynamic load balancing (DLB) requires substantial investment and resources, a burden that can be particularly heavy for mid-sized and smaller manufacturers. In addition, managing supply chains for low-volume components further complicates their operations, often leading to inefficiencies and delays.

2. For HEMS controller providers：

A major limitation lies in the inability of many energy meters to deliver real-time data updates within the crucial 1–2 second window required for effective dynamic load balancing. This shortcoming undermines the reliability and responsiveness of their systems, posing a significant barrier to optimal energy management.

3. For installers and electricians：

Physical constraints within distribution panels present a persistent issue. Limited space often makes the installation of bulky energy monitors impractical, making it difficult to integrate advanced energy management solutions into existing infrastructure. Furthermore, the lack of wireless communication options adds to the complexity of installations, increasing both time and labour costs.

4. For homeowners:

The need to invest in separate devices for dynamic load balancing and whole-home energy monitoring is not only inefficient but also costly. For many, finding an affordable, all-in-one solution that addresses their energy management needs remains a significant challenge, making the adoption of advanced energy technologies less accessible.

IV. Why Choose SDM01-EWM?

The SDM01-EWM stands out as a versatile energy monitor designed to support all three approaches to DLB while offering whole-home energy monitoring. It’s the ideal solution for modern energy management. The SDM01-EWM addresses the key challenges discussed earlier by combining cutting-edge features with a compact, user-friendly design to meet the needs of diverse stakeholders.

1. Product Highlights

• Hybrid Communication: Equipped with Wi-Fi, BLE, and Modbus to integrate EV chargers, HEMS, and other systems.

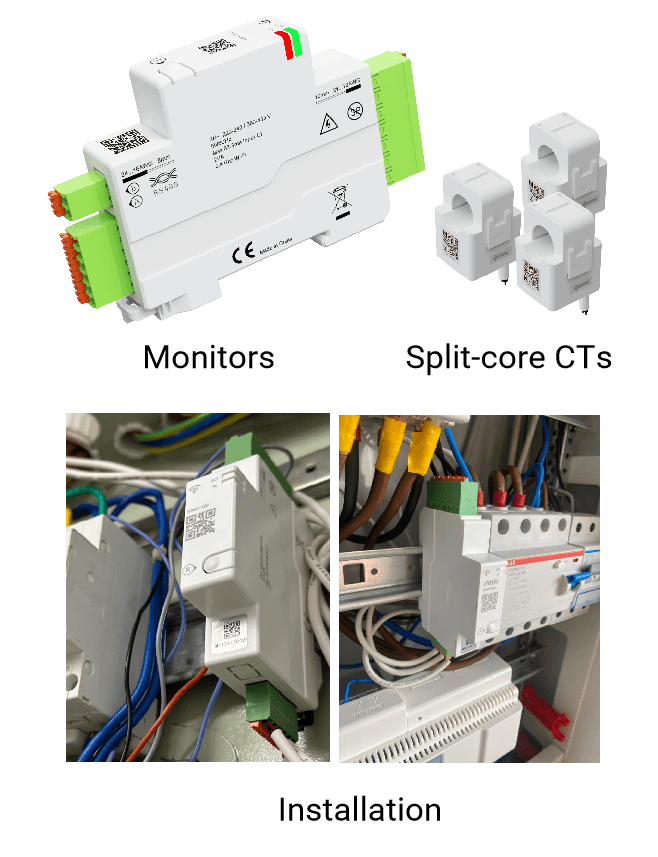

• Compact Size: Fits seamlessly into DIN rails with a slim 1MW module, and split-core CTs simplify installation without cable disconnection.

• Real-Time Performance: Delivers 1-second data updates for responsive DLB and energy management.

• Bi-Directional Measurement: Monitors both power consumption and generation, ideal for homes with renewable energy sources.

• Flexible Protocol Support: Compatible with HTTP, UDP, MQTT, and Modbus.

• Custom Firmware Options: Open architecture with a 7-pin flashing connector allows firmware customization for unique needs.

2. Value Proposition

(1) For EV Charger Manufacturers:

• Avoid costly development of proprietary monitors by integrating SDM01-EWM via Modbus, UDP, and HTTP.

• Fully customizable firmware for brand-specific requirements.

(2) For Installers and Electricians:

• Space-saving design fits easily into compact panels.

• BLE-enabled setup simplifies configuration.

(3) For HEMS Providers:

• Open APIs ensure seamless integration.

• Real-time data transmission supports effective DLB.

(4) For Homeowners:

• All-in-one functionality eliminates the need for separate devices.

• Easy integration with DIY solutions like Home Assistant through the BituoPMD integration.

3. Easy Integration

• Modbus Connectivity: Share your EV charger’s specifications with us at support@bituo-technik.com for firmware updates to ensure compatibility.

• Wi-Fi Integration: Access our API documentation to enable DLB-over-Wi-Fi. The ESP32-8685 SoC provides advanced connectivity for seamless integration.

V. Why Bituo Technik?

• Innovative Technology: Leaders in merging energy monitoring with IoT for smarter energy management.

• Reliability: Robust design ensures dependable performance.

• Compatibility: Open architecture supports diverse ecosystems.

• Ease of Use: Straightforward installation and integration.

• Cost-Effectiveness: Competitive pricing without compromising quality.

VI. Next Steps – Discover the SDM01-EWM Advantages

Visit our webshop to receive an exclusive 30% discount for blog readers—simply mention it to our online chat support.

For businesses, expand your product line by branding the SDM01-EWM under your own label—contact us at info@bituo-technik.com for private labelling details. Additionally, collaborate with us to tailor the SDM01-EWM to your specific needs, ensuring it aligns perfectly with your requirements.

Take the next step in energy management with the SDM01-EWM: the smarter, simpler solution for DLB and whole-home monitoring.
