BITUO TECHNIK / ENERGY MANAGEMENT

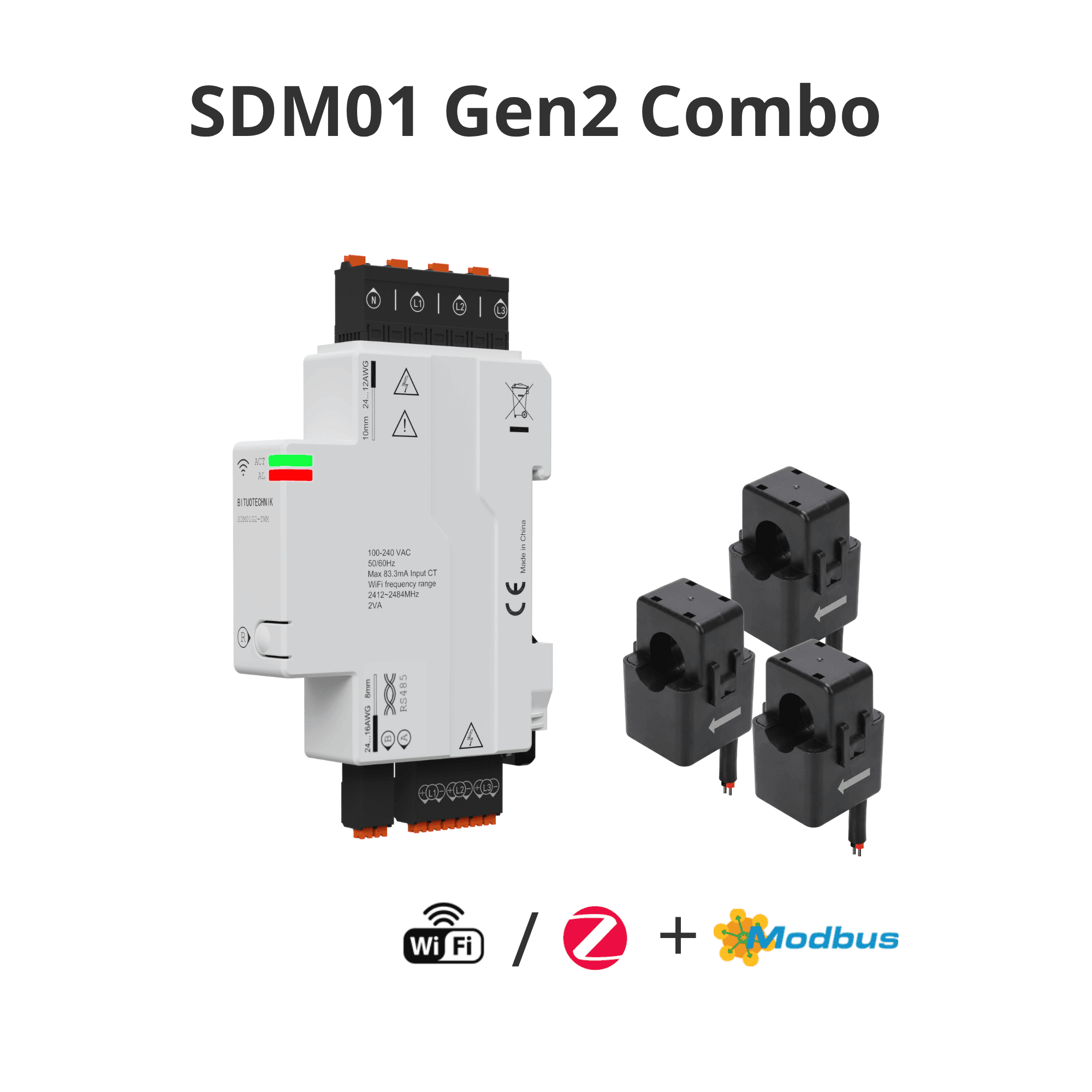

SDM01 Gen2 / COMBO Compact Energy Meter
The SDM01 Combo Gen2 maintains the ultra-slim 18mm (1-module) profile for precise monitoring of three-phase or multiple single-phase circuits. Equipped with three split-core CTs, it accurately measures voltage, current, power, and energy. It supports both wired and wireless communication for flexible and seamless system integration. Its ultra-fast bi-directional power measurement makes it particularly suitable for export limiting application.
Product Type
SDMVariants
Designed for 3-phase or multiple single-phase circuits, the SDM01 Combo Gen2 energy meter uses three split-core CTs for precise energy tracking. Its seamless integration and rapid response make it ideal for typical HEMS applications - such as export limiting and dynamic load balancing.

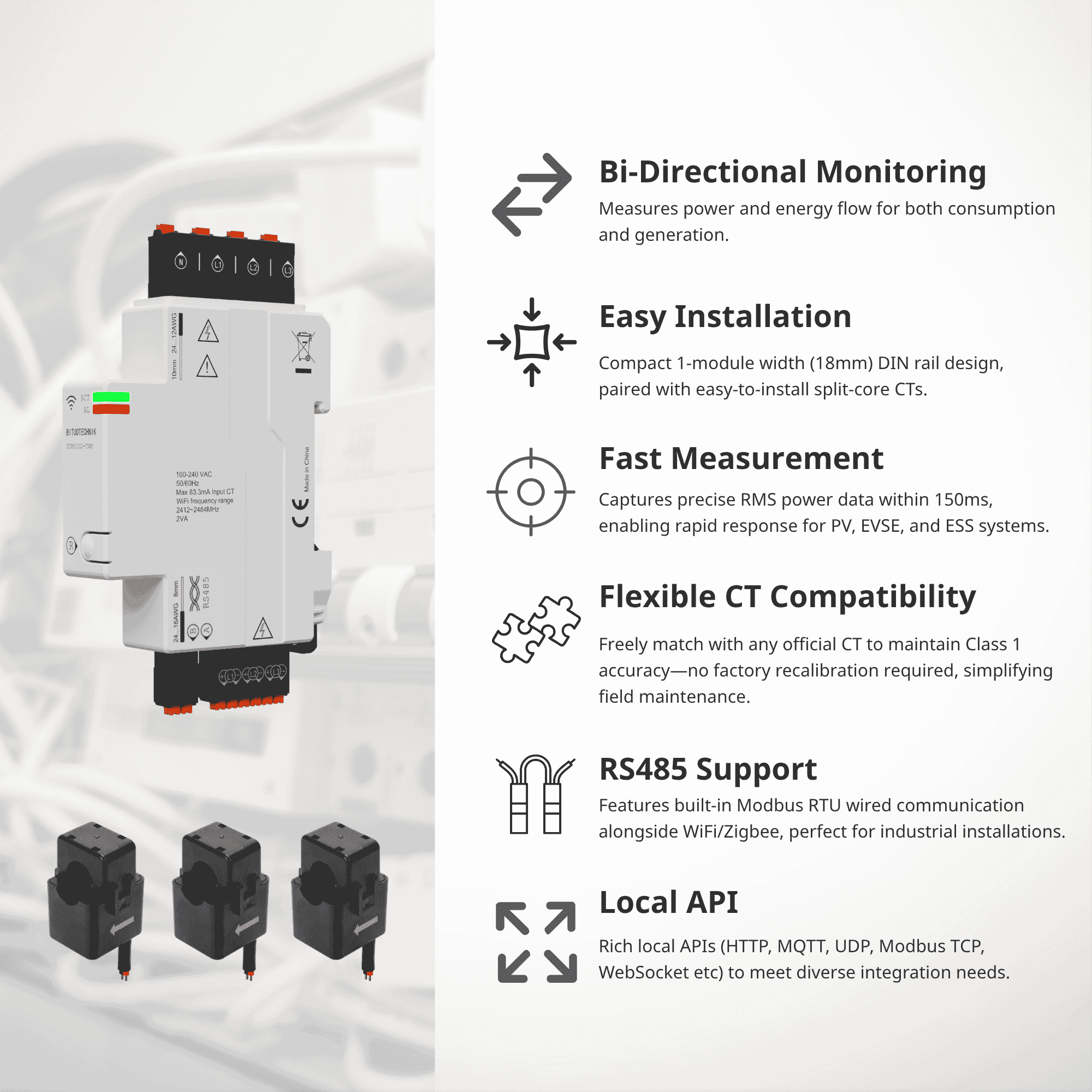

- Bi-directional Measurement: Measures power and energy flow for both consumption and generation.
- Easy Installation: Compact 1-module width (18mm) DIN rail design, paired with easy-to-install split-core CTs.
- Fast Measurement: Captures precise RMS power data within 150ms, enabling rapid response for PV, EVSE, and ESS systems.
- Flexible CT Compatibility: Freely match with any official CT to maintain Class 1 accuracy—no factory recalibration required, simplifying field maintenance.
- RS485 Support: Features built-in Modbus RTU wired communication alongside WiFi/Zigbee, perfect for industrial installations.
- Local API: Rich local APIs (HTTP, MQTT, UDP, Modbus TCP, WebSocket etc) to meet diverse integration needs.
Know more techincal information
KEY FEATURES
Configure SDM01 Gen2 for your panel
Our technical team can help identify the right connectivity and installation option.
Core Capabilities
Hover over the image to view details.
Real-Time Monitoring
Slim 18mm DIN-rail module, compact split-core CTs, and pluggable terminals support a straightforward installation—ideal for space-constrained electrical panels and boards.
Easy Installation
Slim 18mm DIN-rail module, compact split-core CTs, and pluggable terminals support a straightforward installation—ideal for space-constrained electrical panels and boards.
Visual Energy Charts
Slim 18mm DIN-rail module, compact split-core CTs, and pluggable terminals support a straightforward installation—ideal for space-constrained electrical panels and boards.
Combo Communication
Slim 18mm DIN-rail module, compact split-core CTs, and pluggable terminals support a straightforward installation—ideal for space-constrained electrical panels and boards.
Technical Information

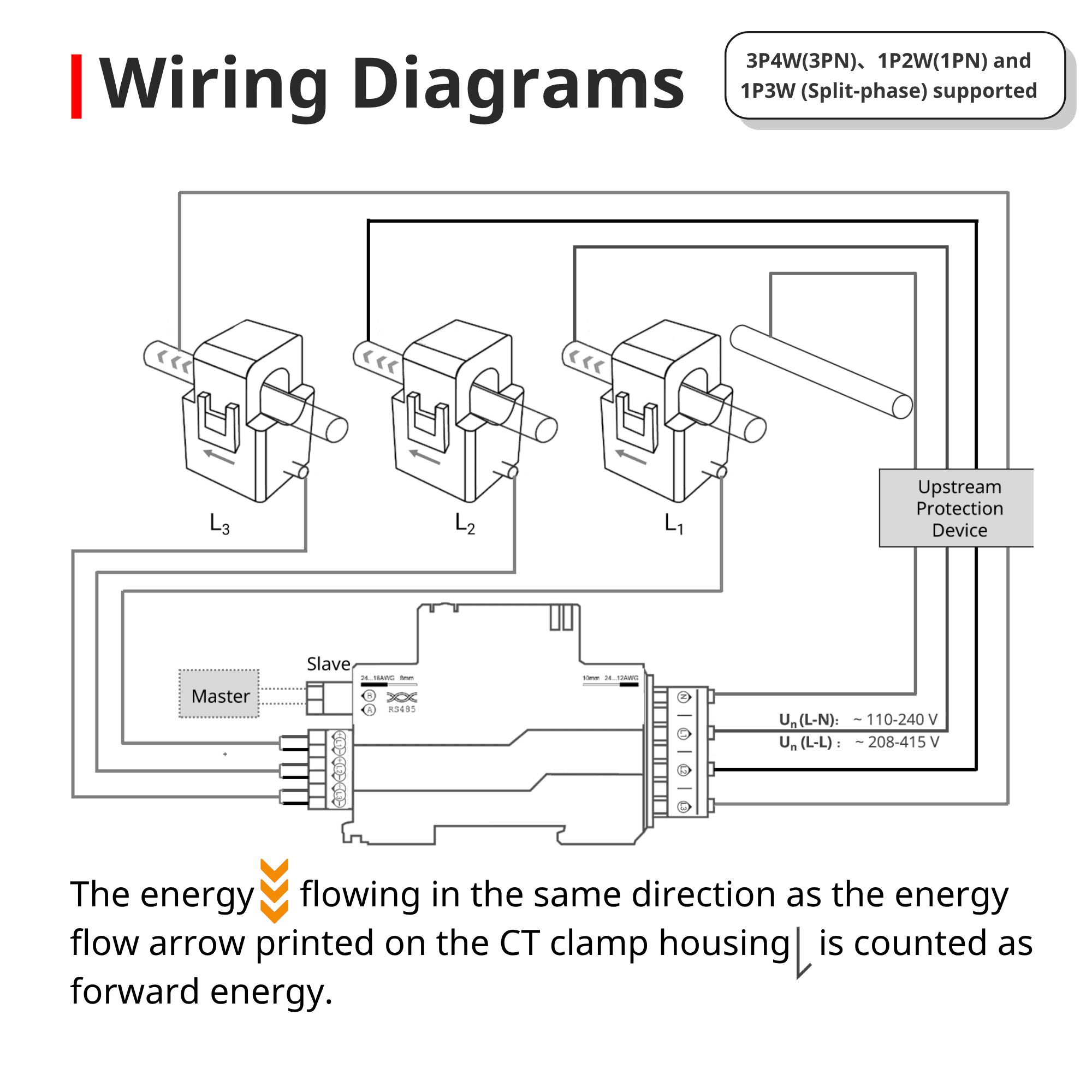

Detailed wiring diagrams and physical dimensions for your reference.

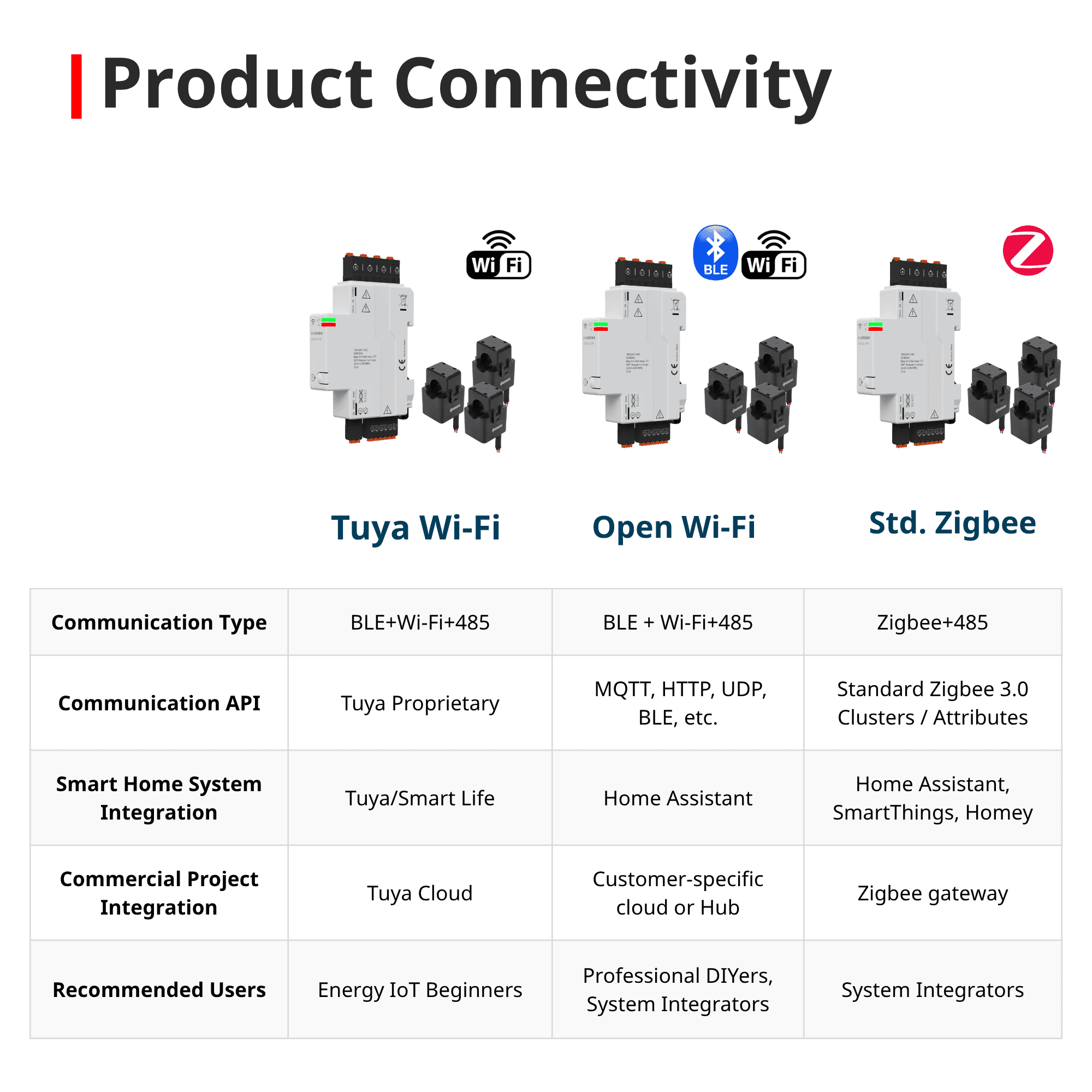

Select the Connectivity that Meets Your Needsplans
Everything you need, at every stage.
