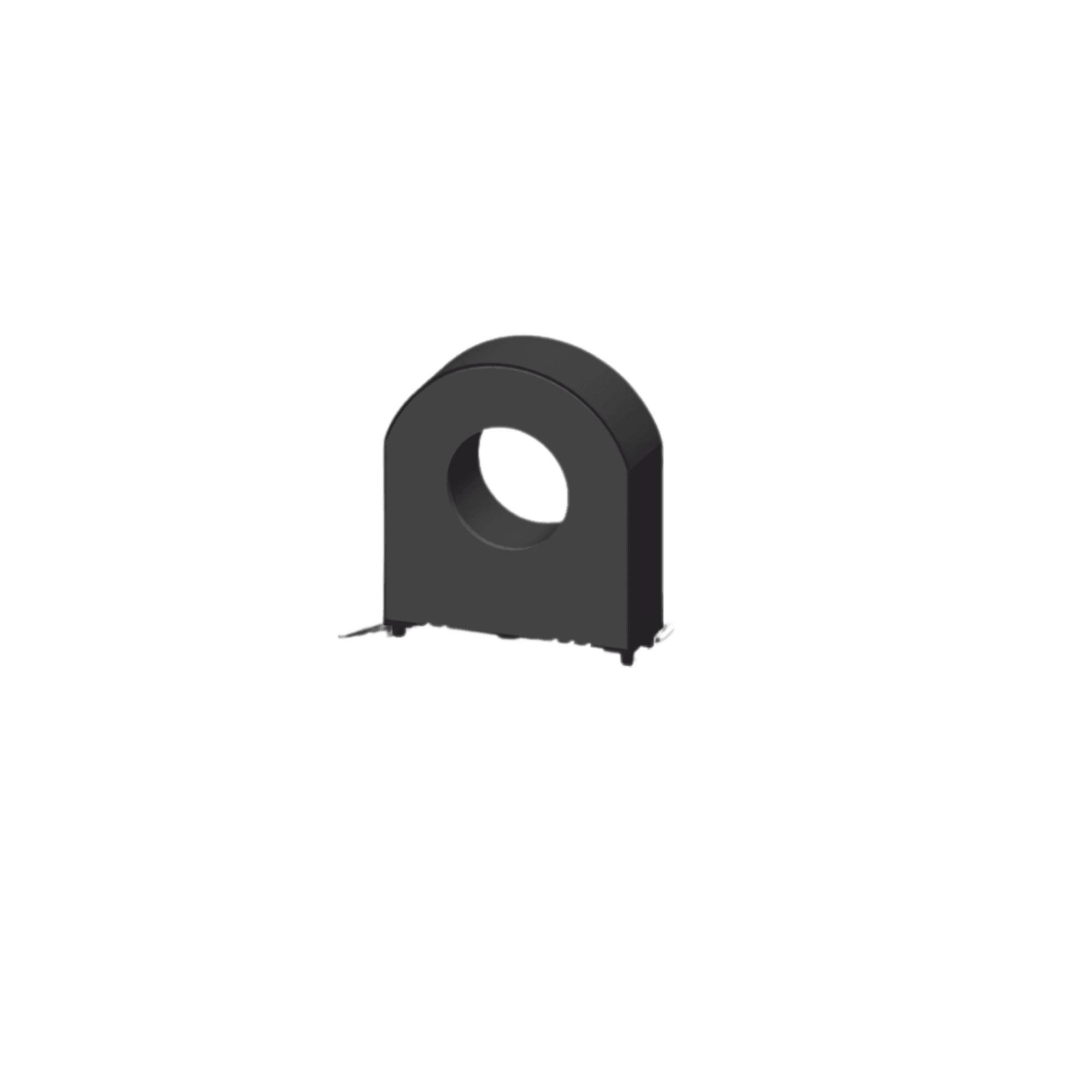

BRCS01V IEC

AC/DC Residual Current Sensor (IEC Version)

The BRCS01V is a high-sensitivity AC/DC residual current sensor, which enables the development of an IEC 62955-compliant Residual Direct Current Detecting Device (RDC-DD) when combined with an EV charging controller and switching devices within EV chargers.

Cost-effective PCB-mount solution of built-in residual current device for AC EV charger
Trip Pin output based on solely DC 6mA and Type-A 30mA +DC 6mA detection
Fast response time facilitating a broad selection of switching devices
Compact design with 18mm through-hole for charging cable up to 3P+N 32A

Tech Documentation

Technical Data

Integration/Wiring Diagrams

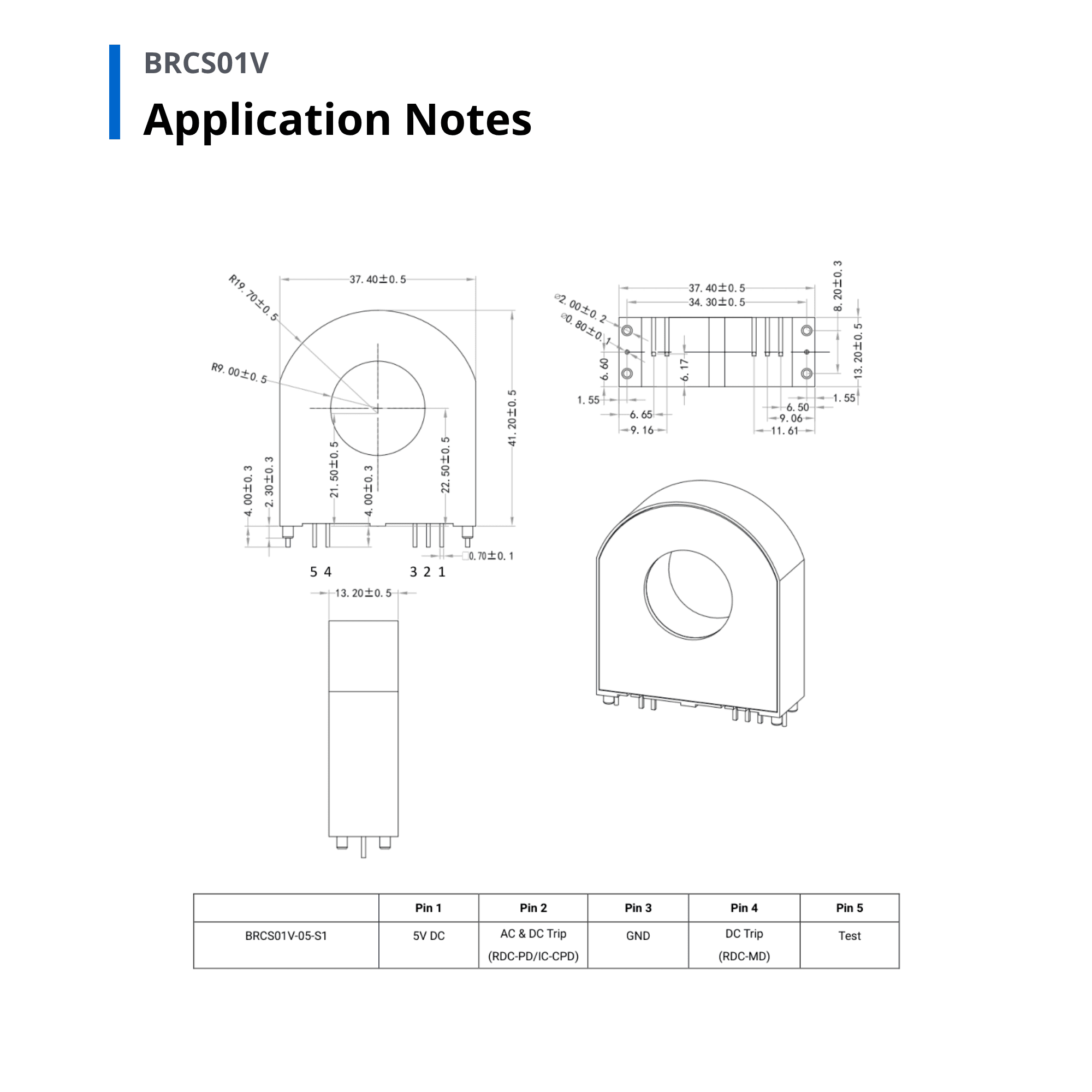

Mechanical Outline

Ordering Information

#	Technical Specification	BRCS01V-05*
101	Rated operating voltage in monitoring circuit	230/400VAC
102	Rated current in monitoring circuit	≤ 32A
103	Poles in monitoring circuit	1P+N / 3P+N
104	Frequency in monitoring circuit	50Hz
105	Rated impulse withstand voltage in monitoring circuit	6kV
106	Over-voltage category in monitoring circuit	III
201	Rated operating voltage in control circuit, Vcc	5VDC±3%
202	Power consumption	<500mW
203	Pin 1 – Vcc for 5V	+5VDC
204	Pin 2 – AC&DC Trip	Digital output (IC-CPD/RDC-PD)
205	Pin 3 – GND	GND
206	Pin 4 – DC Trip	Digital output (RDC-MD)
207	Pin 5 – Test signal	Digital input
301	Rated DC residual operating current IΔdc	6mA
302	Rated DC residual non-operating current IΔndc	3mA
303	Rated AC residual operating current IΔn1)	30mA
304	Rated AC residual non-operating current IΔnc1)	15mA
305	Electrical endurance	20,000
306	Rated operating temperature	-40~85 °C
307	Pollution degree	2

1) #303 and #304 apply to only the AC&DC Trip Pin that sends fault output of Type A 30mA detection.
