BRCS03C IEC
AC/DC Residual Current Sensor (IEC Version)

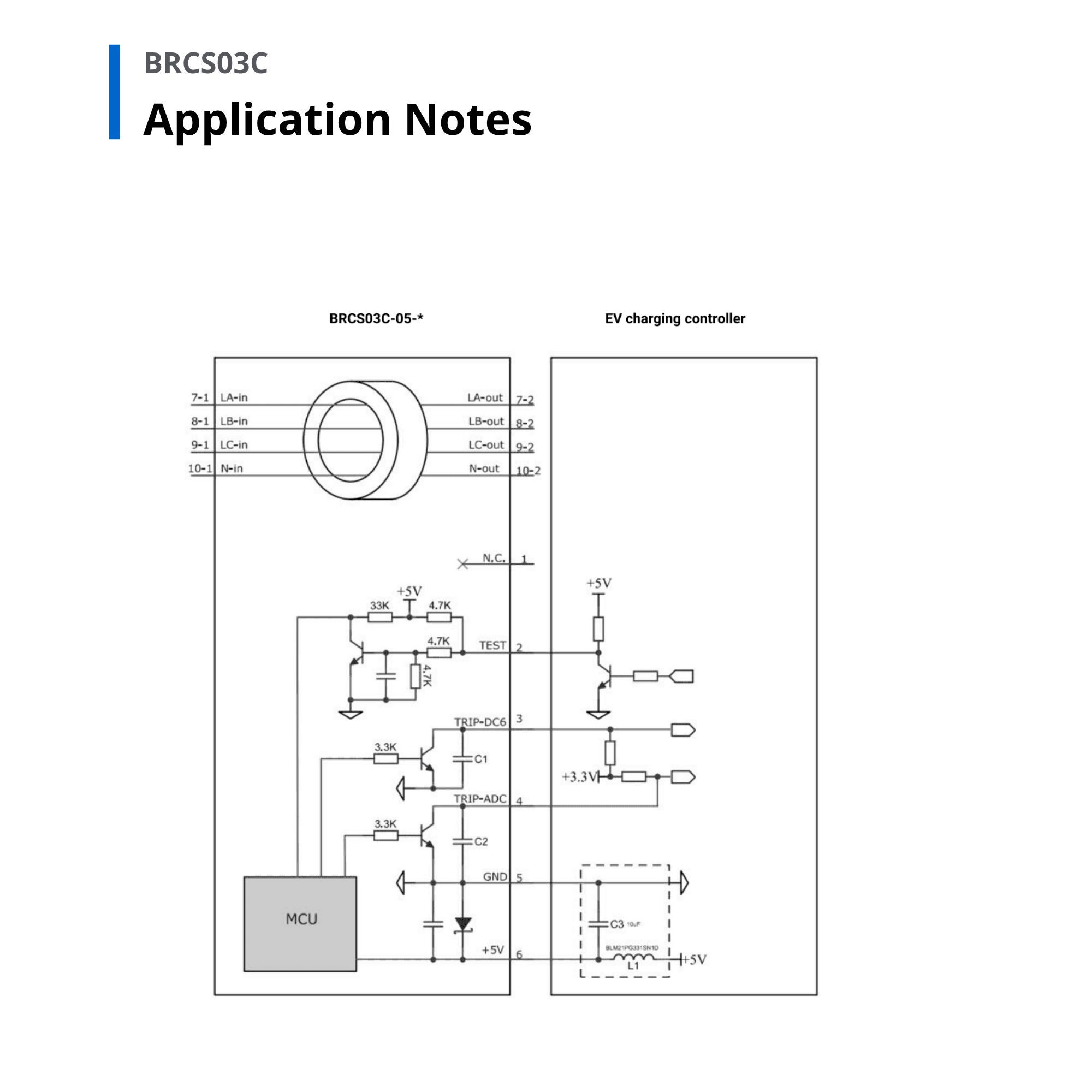

The BRCS03C is an AC/DC residual current sensor with two separate fault signal outputs – one Pin with DC fault signal output and the other Pin with AC & DC fault signal output. It can be used for built-in RDC-MD (Residual Direct Current Monitoring Device, DC 6mA, IEC 62955) or RDC-PD (Type A 30mA and DC 6mA, Residual Direct Current Protection Device, IEC61008-1 + IEC 62955) at Mode-3 AC chargers. Additionally, it can be used in IC-CPD (In-Cable Control- and Protection Device).
Accurate measurement and optimization against nuisance tripping
Cost-effective solution of residual current detection for Mode-2/3 EVSE
Fast response time facilitating a broad selection of switching devices
Two fault signal pins for solely DC 6mA and Type-A 30mA +DC 6mA alarming
