3-Phase 63A MCB-mounting Miniature Energy Meter

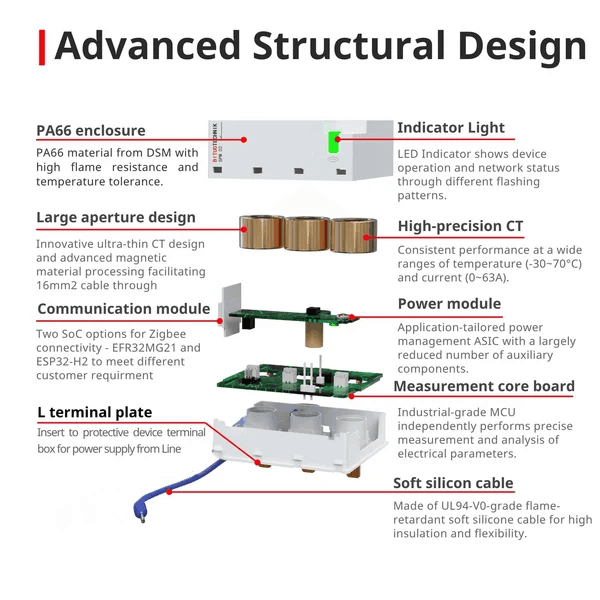

The SPM02/MCBM (MCB-Mounting Version) Miniature Energy Meteris an advanced electrical monitoring device designed for three-phase applications, specifically designed for seamless integration with miniature circuit breakers (MCB).

- Ultra-Compact Installation: Optimize your panel layout. It mounts directly alongside circuit breakers without consuming valuable DIN-rail space, ideal for high-density distribution boards.
- Real-Time Power Tracking: Gain instant visibility into your electrical network. It captures voltage, current, and power factor metrics instantly to help drive energy efficiency strategies.
- Built for Heavy Loads: Features a wide 9.6mm aperture that easily accepts up to 16mm² wiring, safely and reliably supporting measurements up to 63A.
- Uncompromising Precision: Certified Class 1 accuracy (IEC 61557-12) ensures every watt is tracked with professional-grade reliability for critical monitoring tasks.
- Standard Zigbee 3.0 Integration: Powered by standard Zigbee 3.0. It ensures seamless, cloud-independent connectivity with major smart hubs and gateways for rapid deployment.

Tech Documentation

Share

Technical Data

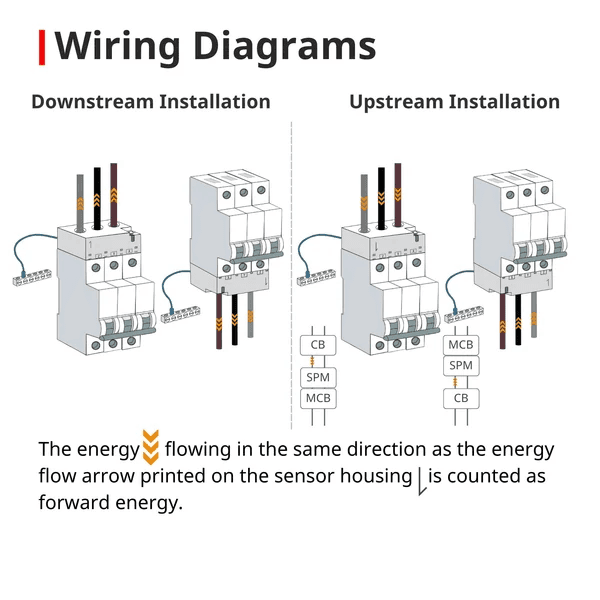

Wiring Diagrams

Mechanical Outline

Ordering Information

  • Rated voltage: 220-240(L-N) / 380-415 VAC(L-L), 50/60Hz

  • Max monitoring current: 63 A

  • Over-voltage category: III

  • Rated insulating voltage: 440 V

  • Rated impulse withstand voltage: 4 kV

  • Pollution degree: 3

  • Protection degree: IP20

  • Energy measurement accuracy: Class 1 (Active energy, IEC61557-12)

  • Maximum power consumption: ≤ 2 VA

  • Rated operating temperature: -25℃ to 70℃

  • Main Module Dimension: 46.4x53.0x21.3mm

  • Through-hole Aperture: Ø9.6 mm

  • Communication type: Standard Zigbee 3.0

  • Compatible circuit breakers1) 2): Siemens 5SY/5SL


Remarks
1) The manufacturer has only verified the compatibility of the SPM01 MCBM with Siemens 5SY/5SL series, including tests on wiring capacity, thermal performance, and mechanical fit etc. For compatibility with other circuit breaker brands, please contact us directly.
2) The flexible version is recommended if you are unsure about MCB-mounting compatibility with your circuit breakers.
