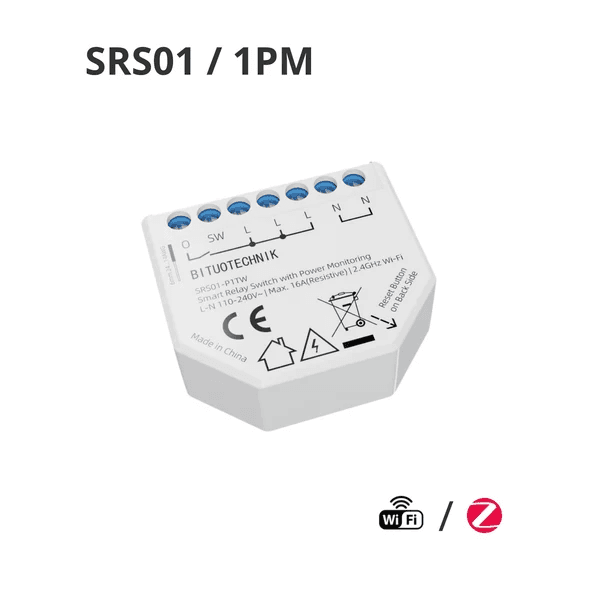

SRS 1PM

Single-Channel Smart Relay Switch with Power Monitoring

SRS01 1PM is a compact single-channel relay switch with integrated power monitoring and wireless communication. It provides real-time measurement of voltage, current, power, and energy, making it ideal for smart home automation and lighting control.

- Mini Retrofit Design: Ultra-compact (38×42×16mm) fits behind existing switches. Supports 16A max load, keeping your original switch style while adding smart control.

- Real-time Monitoring: Measures real-time voltage, current, power, and energy for precise consumption tracking across home and commercial devices.

- 16A Control Support: Works with both toggle and momentary switches. Control lights via App or physical wall switch simultaneously without conflict.

- Flexible Connectivity: Available in 3 editions to match your needs: Tuya Wi-Fi (Easy App), Matter over Wi-Fi, or Open Wi-Fi <-> Standard Zigbee 3.0 Switchable.
- Built-in Safety: Equipped with over-temperature, over-current, and over-voltage protection to extend product lifespan and minimize failure risks.

Tech Documentation

Technical Data

Wiring Diagrams

Mechanical Outline

Ordering Information

Rated voltage: 110–240 VAC, 50/60 Hz
Max switching load: 16A (Resistive)
Type of switching: Relay, Micro gap (μ)
Dimensions: 38×42×16mm
Rated operating temperature: -20 to 40℃
Conductor cross section: 24 to 14AWG / 0.2 to 2.5mm²
Conductor stripped length: 6 to 7mm
Screw terminals max torque: 0.4Nm
Measurement accuracy: ±2% (Active energy)
Connectivity: BLE; Wi-Fi; Zigbee;
